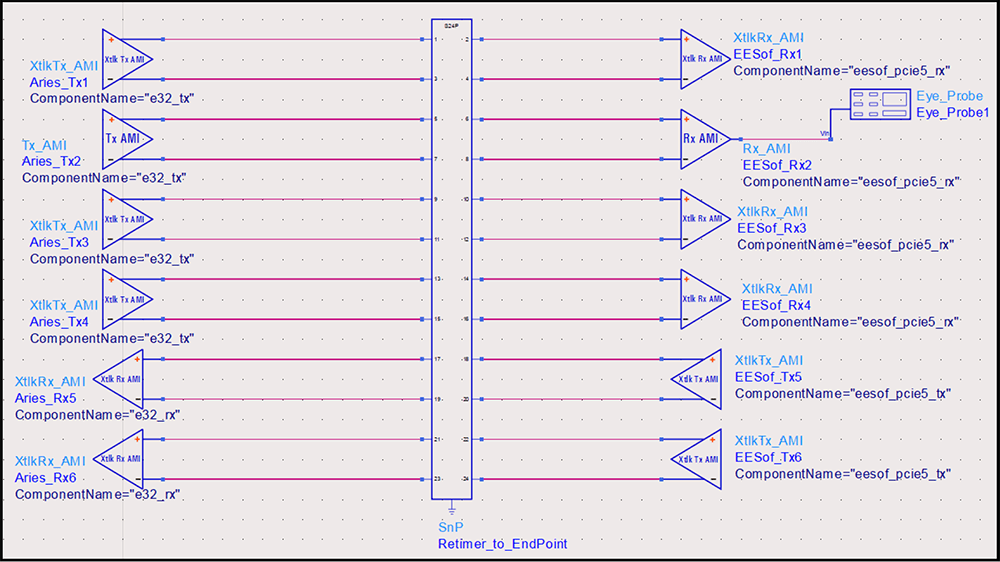

Retimer to EP segment
Simulating with Retimers for PCIe® 5.0

The design solution space for high-speed serial links is becoming increasingly complex with increasing data rates, diverse channel topologies, and tuning parameters for active components. PCI Express® (PCIe®) 5.0, at 32 GT/s, is a particularly relevant example of an application whose design solution space can be a daunting problem to tackle, given the performance-cost requirements of its end equipment. This paper is intended to help system designers navigate these design challenges by providing a how-to guide for defining, executing, and analyzing system-level simulations, including PCIe 5.0 Root Complex (RC), Retimer, and End Point (EP).
