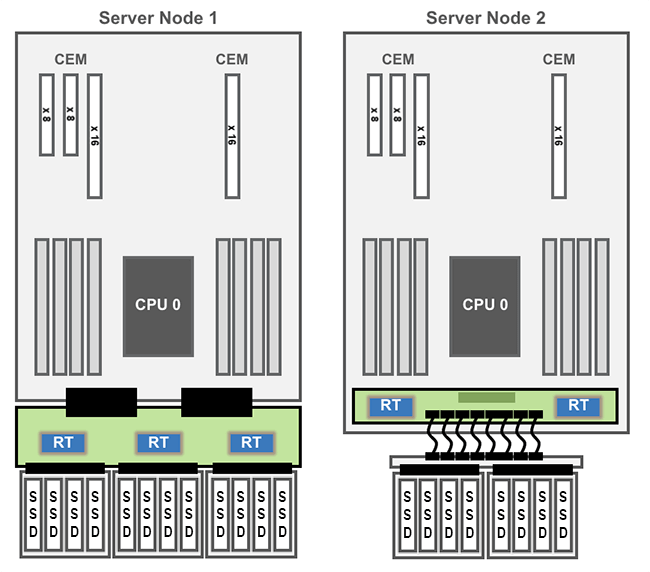

NVMe Extender Cards

Enabling Multi-Connector and Cabled Topologies

RT = Retimer

Requirements & Challenges

  • NVME drives typically connect to the CPU through multiple connectors — interposer boards, midplanes/backplanes, and cables.
  • Multiple SSD vendors/models must be qualified for a server design​
  • NVMe drives require hot-plug functionality

Aries Retimer Benefits

  • Supports SSD-specific features such as hot-plug and bifurcation down to x2 link width
  • Integrated capacitors reduce total retimer footprint size, fits easily on small mezzanine or interposer boards​
  • Built-in protocol analyzer for easy bring-up & debug​
  • Rigorous interop tests with numerous NVMe drives to ensure design confidence​
Similar Applications

Server Base Board

PCIe® Riser Cards

Products

Orderable Part NumberDocumentsDescriptionPackageMax PCIe GenPCIe LanesPack QuantityOrdering
PT5081LRShttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 5.0x 8

180

Contact Us, https://www.asteralabs.com/product-details/PT5081LRS/
PT5081LRLhttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 5.0x 8

1800

Contact Us, https://www.asteralabs.com/product-details/PT5081LRL/
PT5081LXShttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 5.0 / CXLx 8

180

Contact Us, https://www.asteralabs.com/product-details/PT5081LXS/
PT5081LXLhttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 5.0 / CXLx 8

1800

Contact Us, https://www.asteralabs.com/product-details/PT5081LXL/
PT5161LXLhttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 5.0 / CXLx 16

2400

Contact Us, https://www.asteralabs.com/product-details/pt5161lxl/
PT5161LXShttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 5.0 / CXLx 16

240

Contact Us, https://www.asteralabs.com/product-details/pt5161lxs/
PT5161LRLhttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 5.0x 16

2400

Contact Us, https://www.asteralabs.com/product-details/pt5161lrl/
PT5161LRShttps://www.asteralabs.com/wp-content/uploads/2021/03/Astera_Labs_PT5161L_Product_Brief.pdfAstera Labs CXL/PCIe 5.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 5.0x 16

240

Contact Us, https://www.asteralabs.com/product-details/pt5161lrs/
COMET-REVAhttps://www.asteralabs.com/wp-content/uploads/2020/08/Astera_Labs_COMET_Product_Brief.pdfAstera Labs USB-to-I2C Communication Module354-pin FC-CSP

1

Digi-Key, https://www.digikey.com/en/products/detail/astera-labs-inc/COMET-REVA/13881175?s=N4IgTCBcDaIMYHsC2BTALgAgIYGc0oCcsMAbLAIxxAF0BfIA; Mouser, https://www.mouser.com/ProductDetail/Astera-Labs/COMET-REVA?qs=%2Fha2pyFadujscaAy75Pb6mldQROydX7z1bYmIMd%252Bpx6QoUJRZnAUzA%3D%3D; Contact Us, https://www.asteralabs.com/order-products/?product=COMET-REVA
Equinox PCIe 5.0 x16 Riser Cardhttps://www.asteralabs.com/wp-content/uploads/2020/11/Astera_Labs_Eclipse_Equinox_Product_Brief.pdfAries PCI Express® 5.0 Smart Retimer Riser Card354-pin FC-CSPPCIe 5.0x 16

1

Digi-Key, https://www.digikey.com/en/products/detail/astera-labs-inc/EQUINOX-REVA/13982648?s=N4IgTCBcDaIKYEcCuBLAdgewB4gLoF8g; Contact Us, https://www.asteralabs.com/products/smart-retimers/pcie-cxl-smart-retimers/order-systems/?system=EQUINOX-REVA
Eclipse PCIe 4.0 x16 GPU Riser Cardhttps://www.asteralabs.com/wp-content/uploads/2020/11/Astera_Labs_Eclipse_Equinox_Product_Brief.pdfAries PCI Express® 4.0 Smart Retimer Riser Card354-pin FC-CSPPCIe 4.0x 16

1

Contact Us, https://www.asteralabs.com/products/smart-retimers/pcie-cxl-smart-retimers/order-systems/?system=ECLIPSE-REVA
PT4080LRLhttps://www.asteralabs.com/wp-content/uploads/2021/01/Astera_Labs_PT4080L_Product_Brief.pdfAstera Labs PCIe 4.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 4.0x 8

1800

Contact Us, https://www.asteralabs.com/product-details/pt4080lrl/
PT4080LRShttps://www.asteralabs.com/wp-content/uploads/2021/01/Astera_Labs_PT4080L_Product_Brief.pdfAstera Labs PCIe 4.0 x8 Low-Latency Smart Retimer332-pin FC-CSPPCIe 4.0x 8

180

Digi-Key, https://www.digikey.com/en/products/detail/astera-labs-inc/PT4080LRS/13881176?s=N4IgTCBcDaIAoBUAsAGAHCkBdAvkA; Mouser, https://www.mouser.com/ProductDetail/Astera-Labs/PT4080LRS/?qs=%2Fha2pyFadui%252BsY0Drb6169B9G43CO6KNeQYhy4%252B6jzASnE%2FjnFg7Gw%3D%3D; Contact Us, https://www.asteralabs.com/product-details/pt4080lrs/
PT4161LRLhttps://www.asteralabs.com/wp-content/uploads/2020/08/Astera_Labs_PT4161L_Product_Brief.pdfAstera Labs PCIe 4.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 4.0x 16

2400

Contact Us, https://www.asteralabs.com/product-details/pt4161lrl/
PT4161LRShttps://www.asteralabs.com/wp-content/uploads/2020/08/Astera_Labs_PT4161L_Product_Brief.pdfAstera Labs PCIe 4.0 x16 Low-Latency Smart Retimer354-pin FC-CSPPCIe 4.0x 16

240

Digi-Key, https://www.digikey.com/en/products/detail/astera-labs-inc/PT4161LRS/13881174?s=N4IgTCBcDaIAoBUAsBGAbCkBdAvkA; Mouser, https://www.mouser.com/ProductDetail/390-PT4161LRS/; Contact Us, https://www.asteralabs.com/product-details/pt4161lrs/
